MODX 70

MODX 70

MODX 70

Builder
Ocean Developpement
Built Year
2028
Flag
TBD
Location
France
Length (M):
23
Price
Euro (€)8,000,000
Rate

About the Yacht

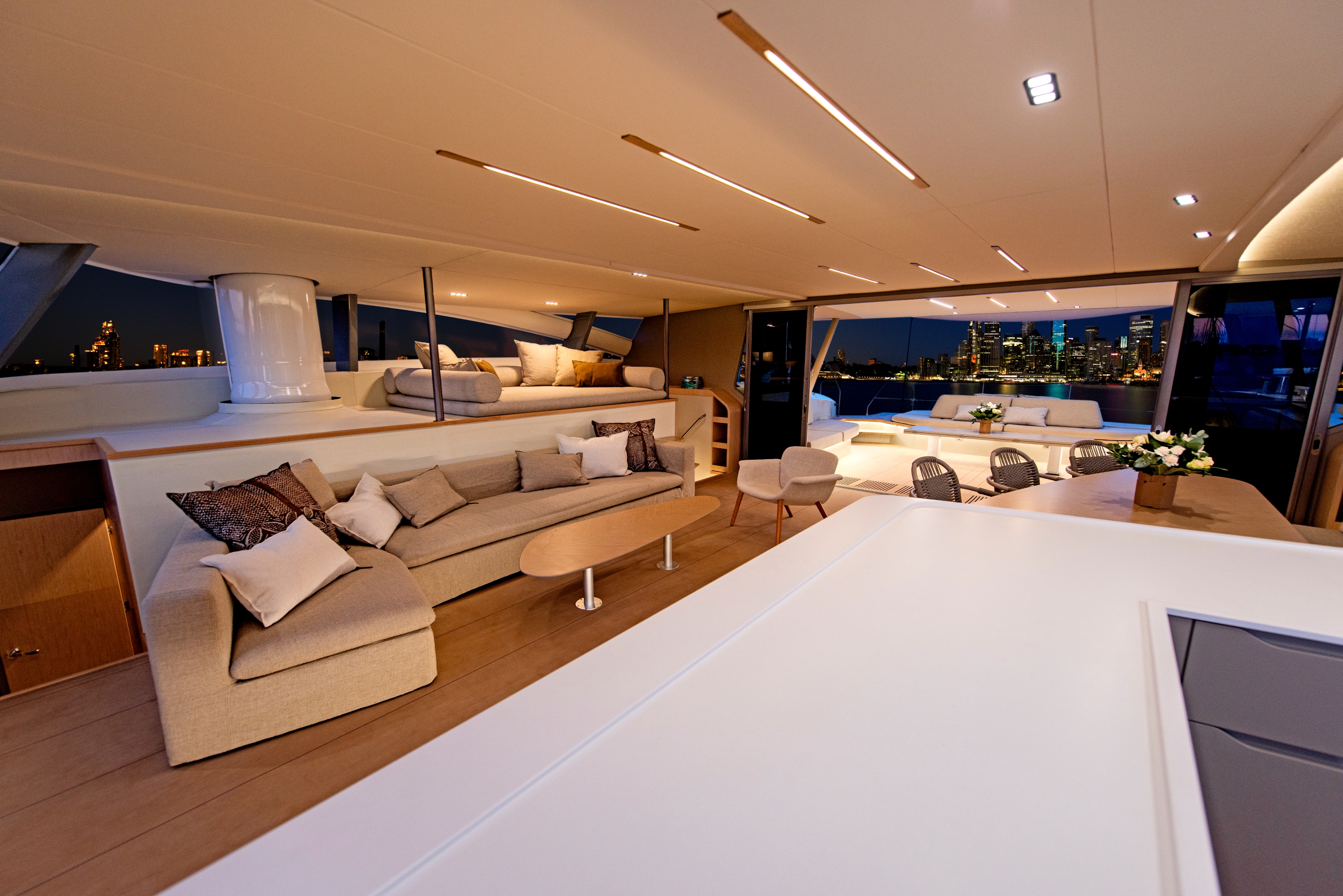

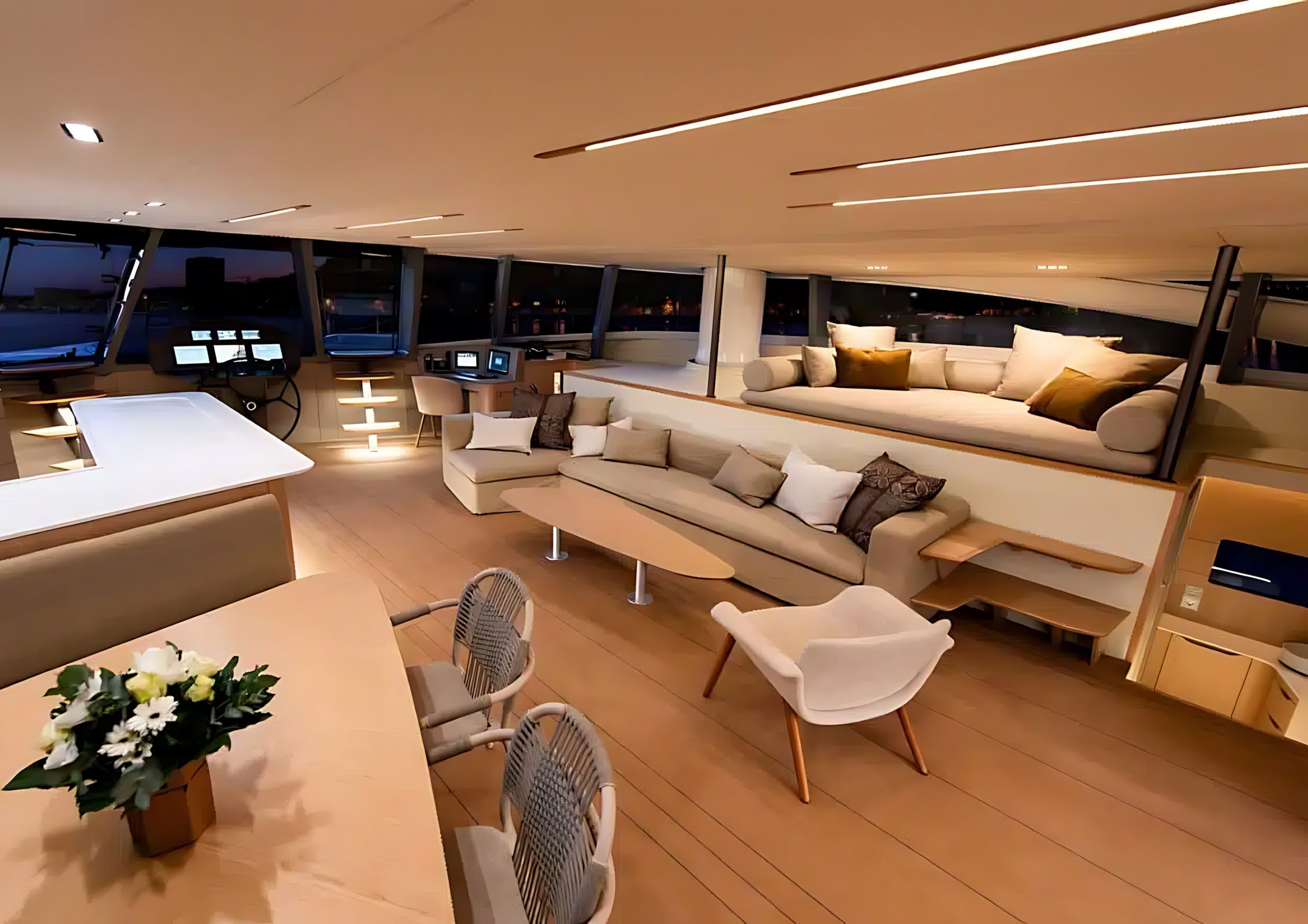

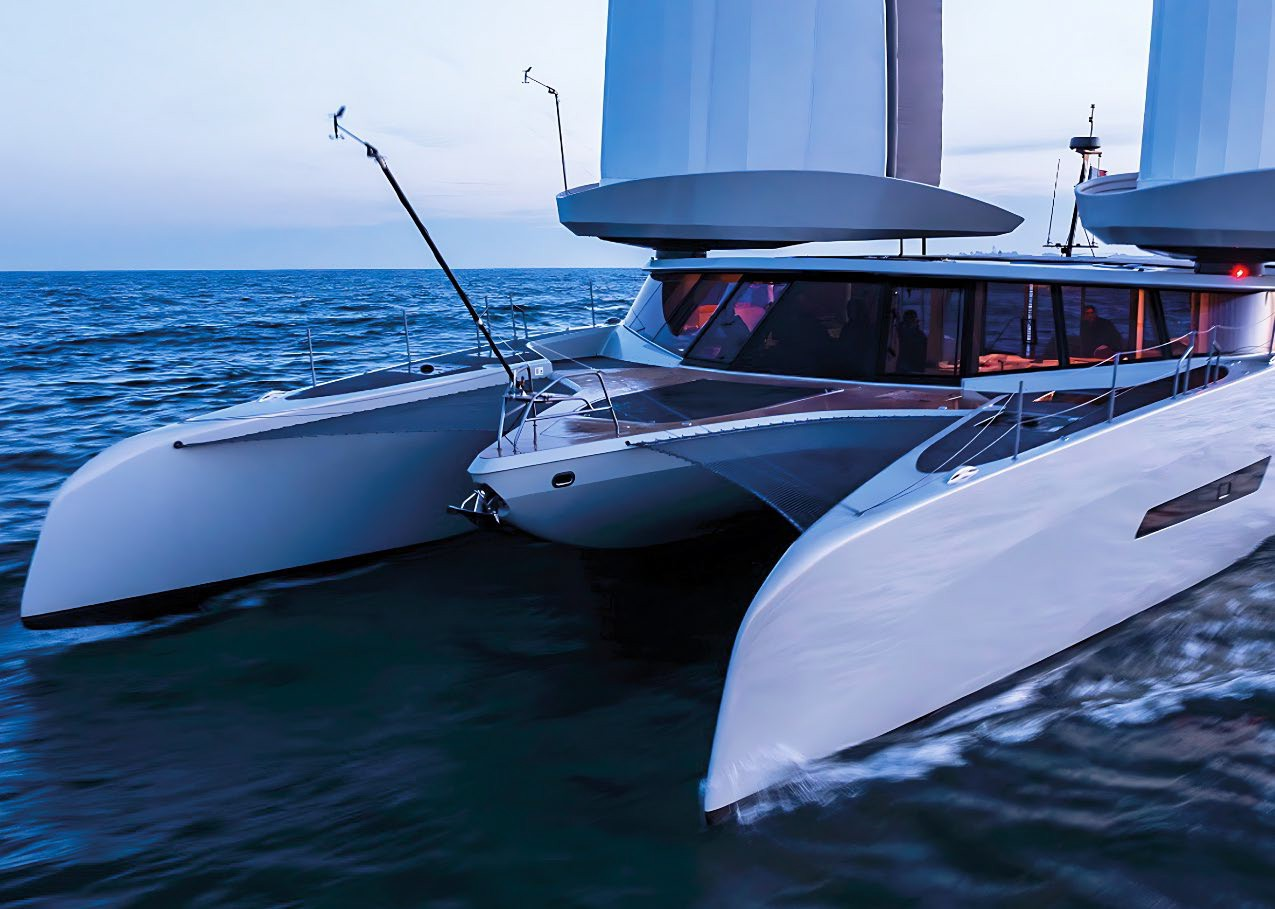

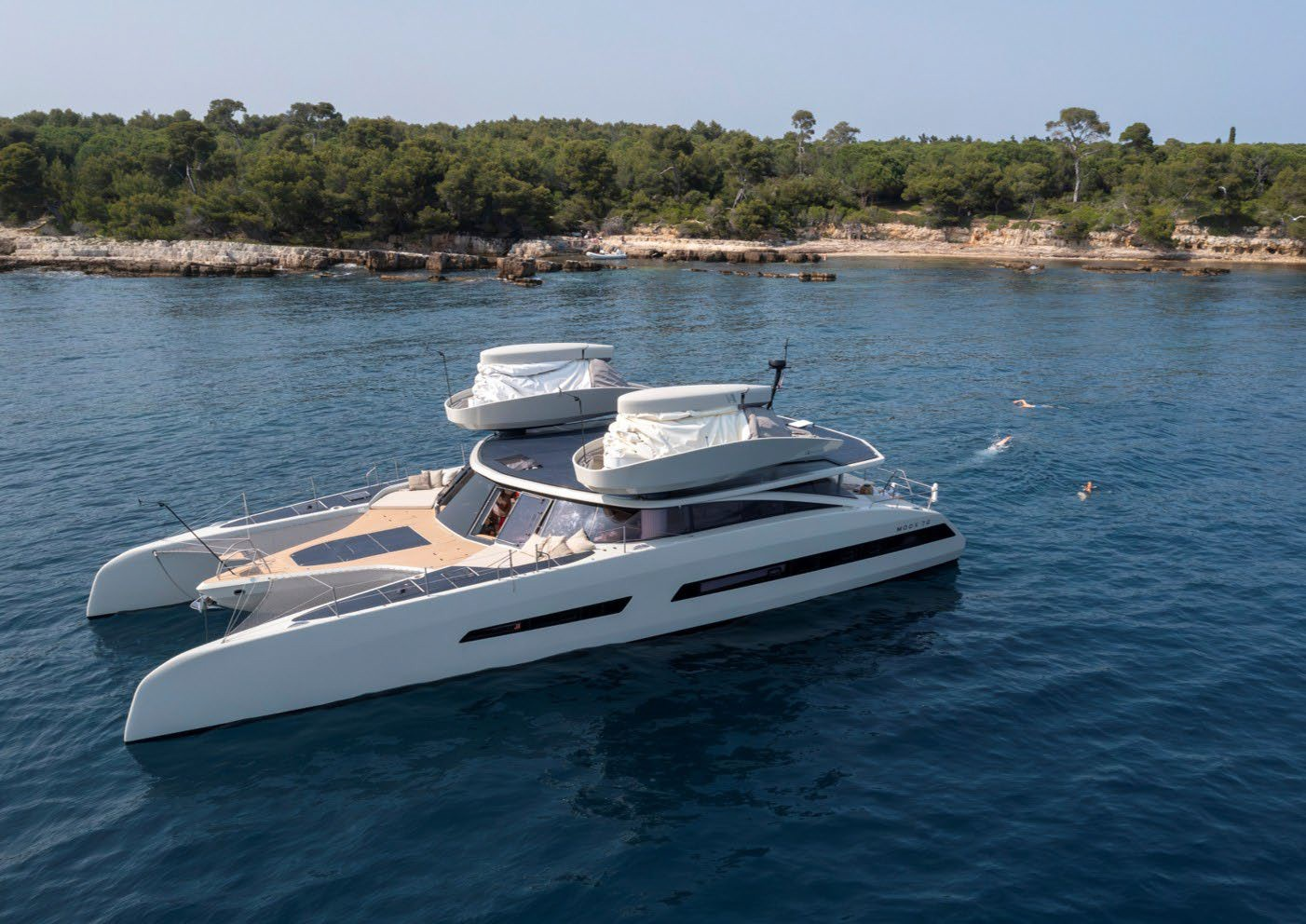

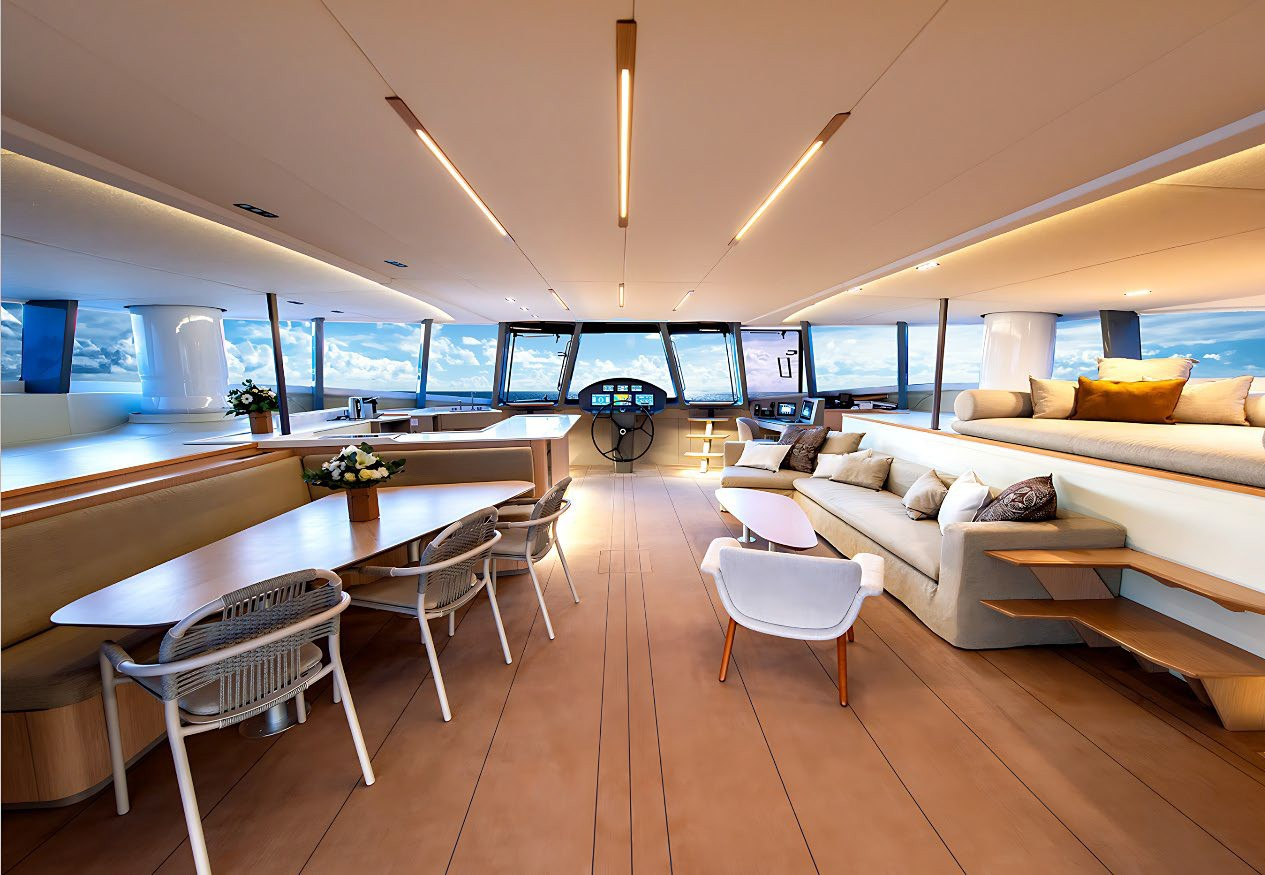

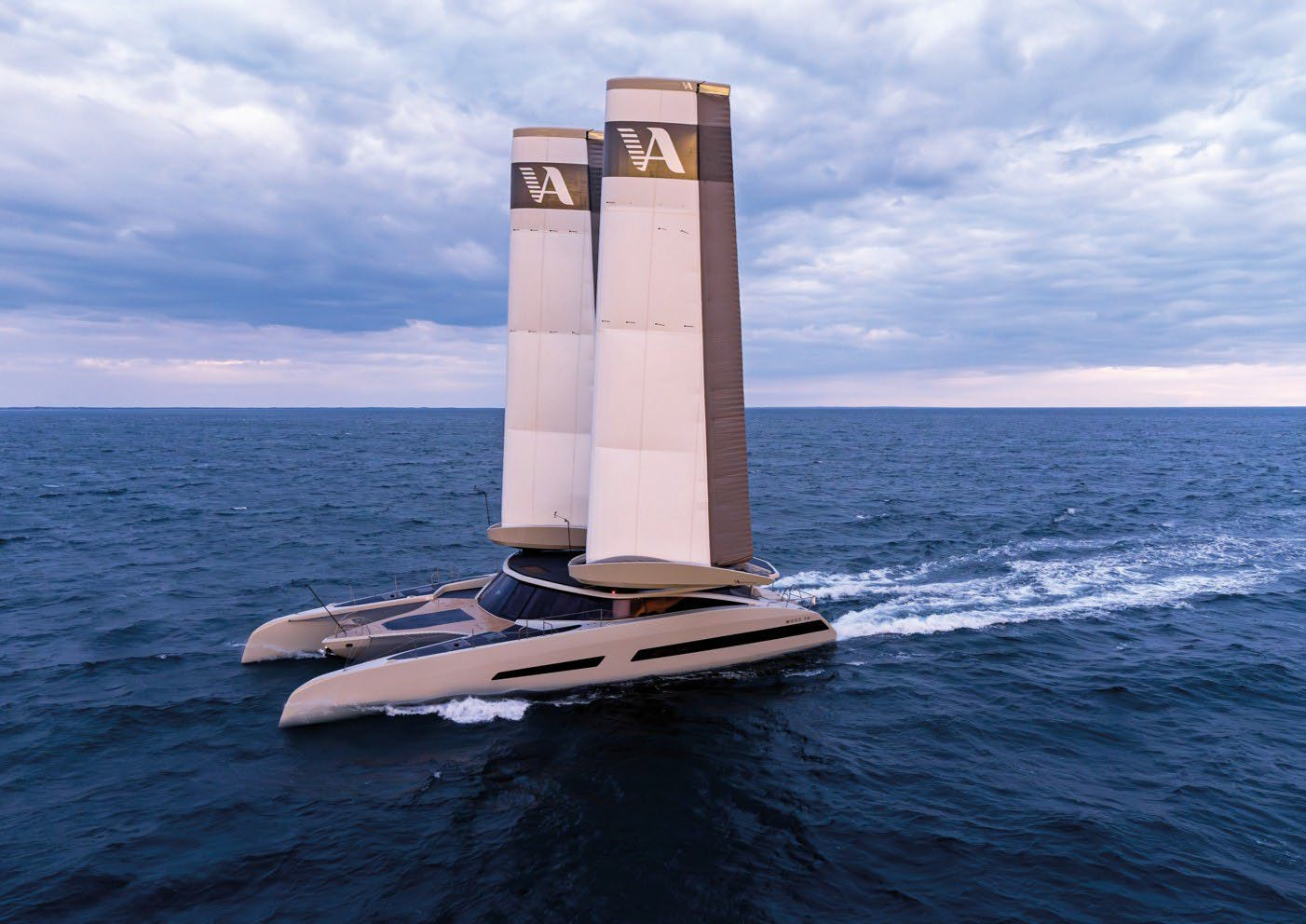

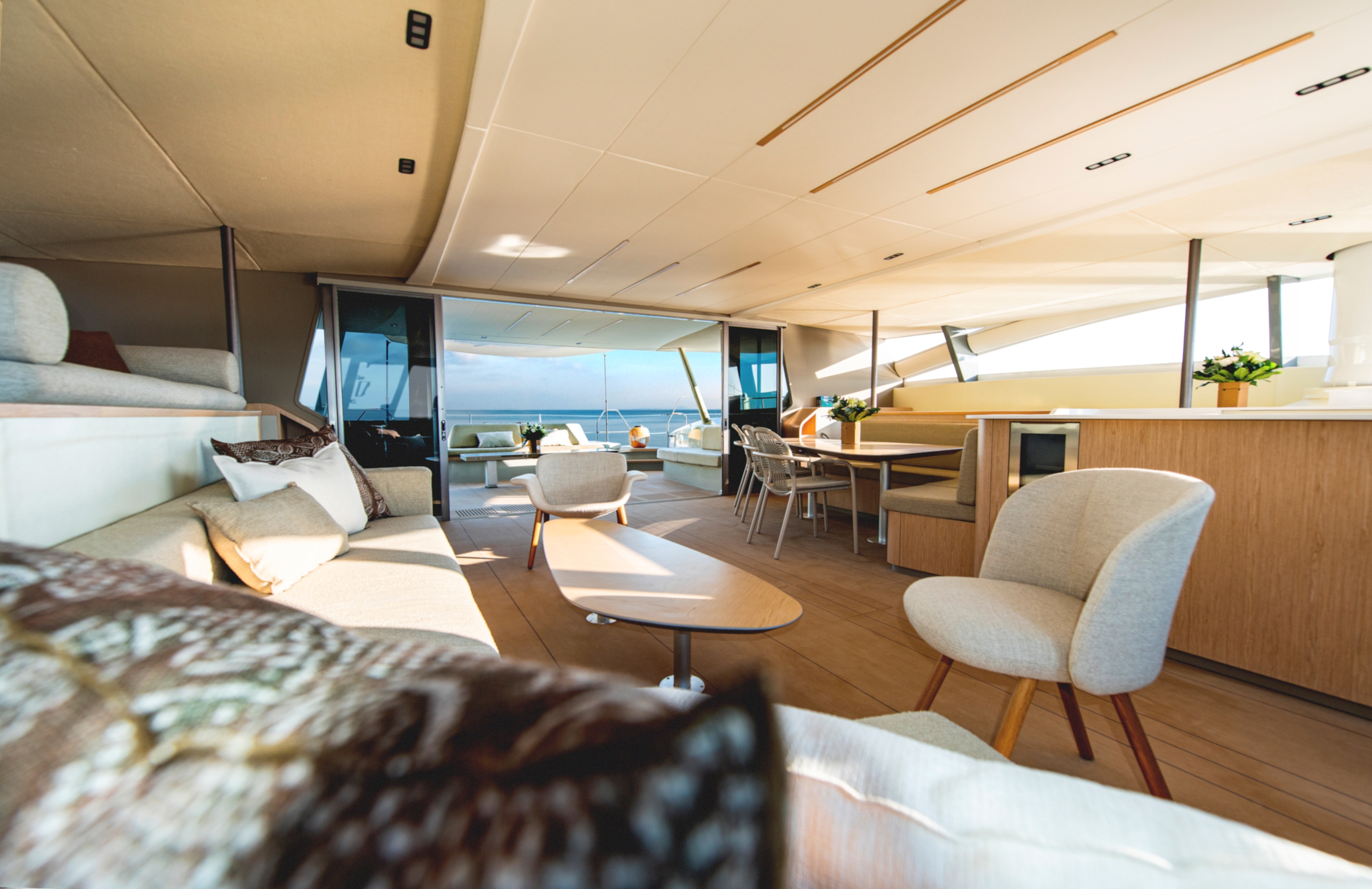

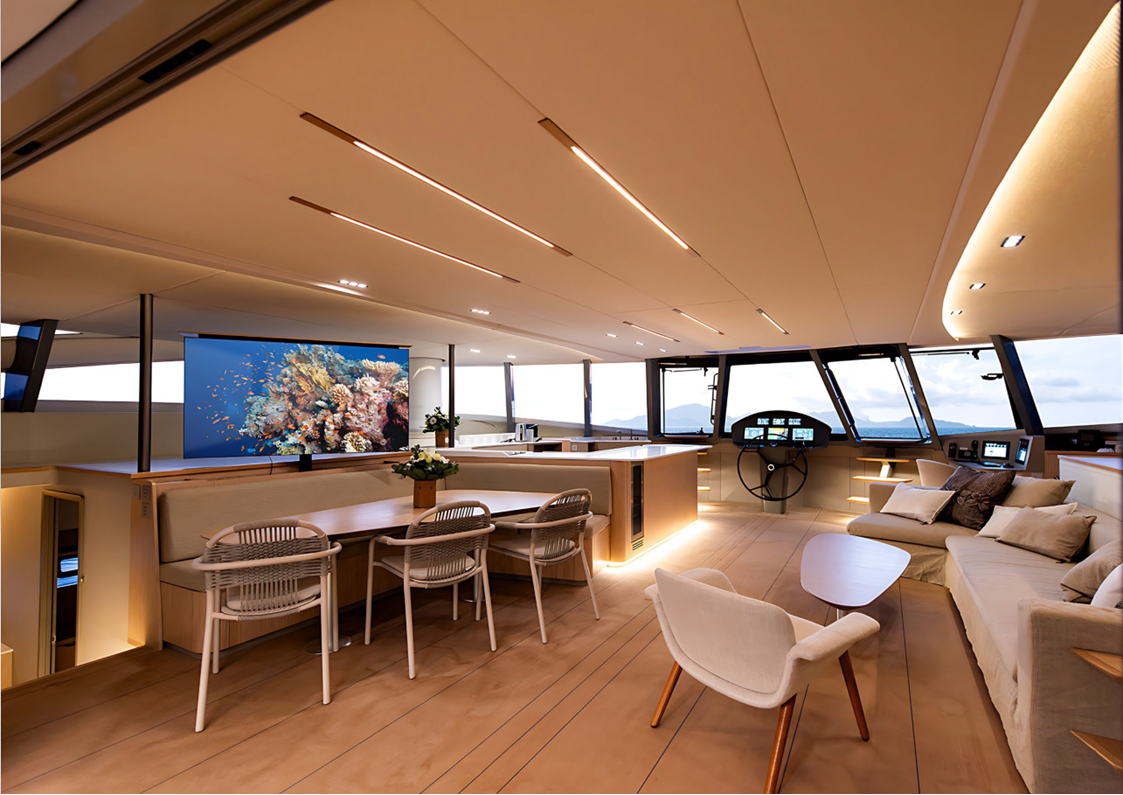

MODX 70 is a 21.33 m sailing catamaran created by Couach around a 100% renewable-energy concept, combining wind propulsion, electric propulsion, hydrogeneration and solar power. Her avant-garde design is supported by VPLP Design for naval architecture and structural calculations, while biosourced and recycled materials contribute to an environmentally focused construction approach with refined contemporary character. Inside, MODX 70 offers more than 185 m² of living space, with a 54 m² saloon delivering 360-degree panoramic views, a private lounge, dining for 10, a top-of-range galley, bar, refrigerated wine cellar and built-in home cinema. The optional 20 m² owner's suite and flexible guest accommodation are complemented by environmentally friendly air conditioning, extensive lighting and carefully specified onboard fittings. Exterior living centres on a 45 m² shaded deck area and a 35 m² foredeck, supported by shade sails, twin swim ladders, tender handling equipment and comprehensive deck hardware. Two automated 100 m² Aeroforce inflatable wings, a 70 m² solar array, 250 kWh battery pack, variable-pitch propellers, bow thruster and integrated navigation systems create an advanced sailing platform designed for distinctive performance and autonomy.

Characteristics

Accommodation

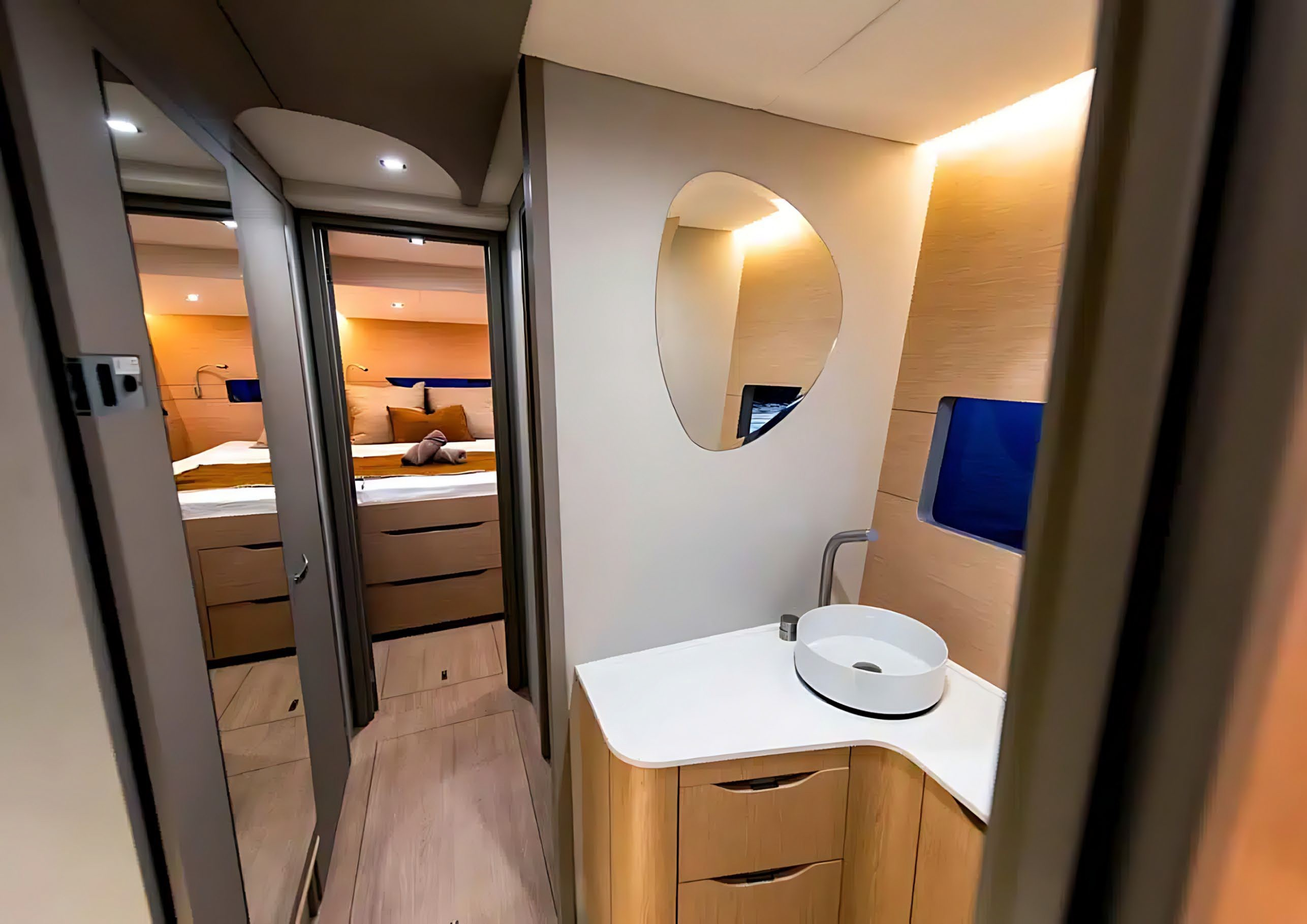

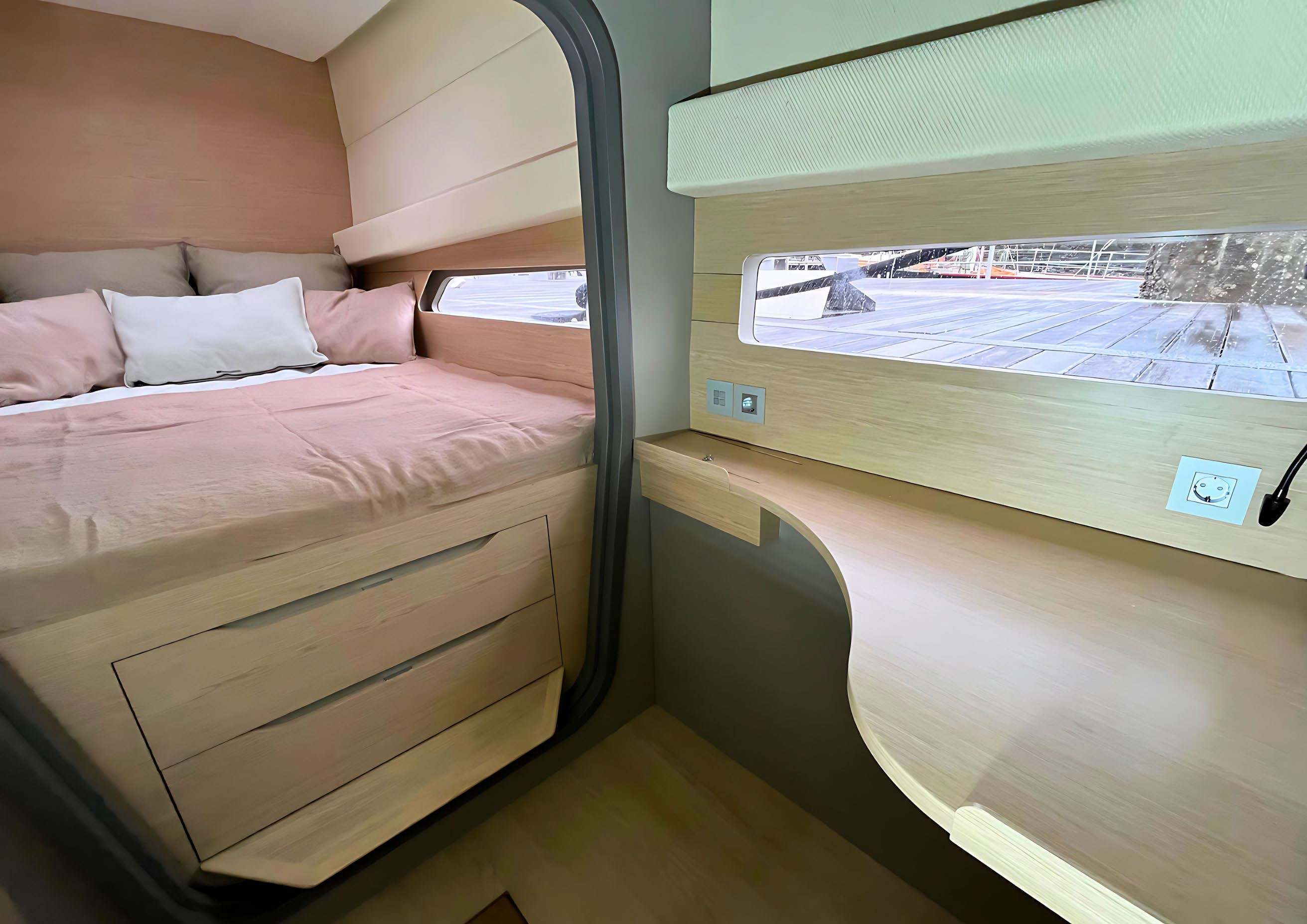

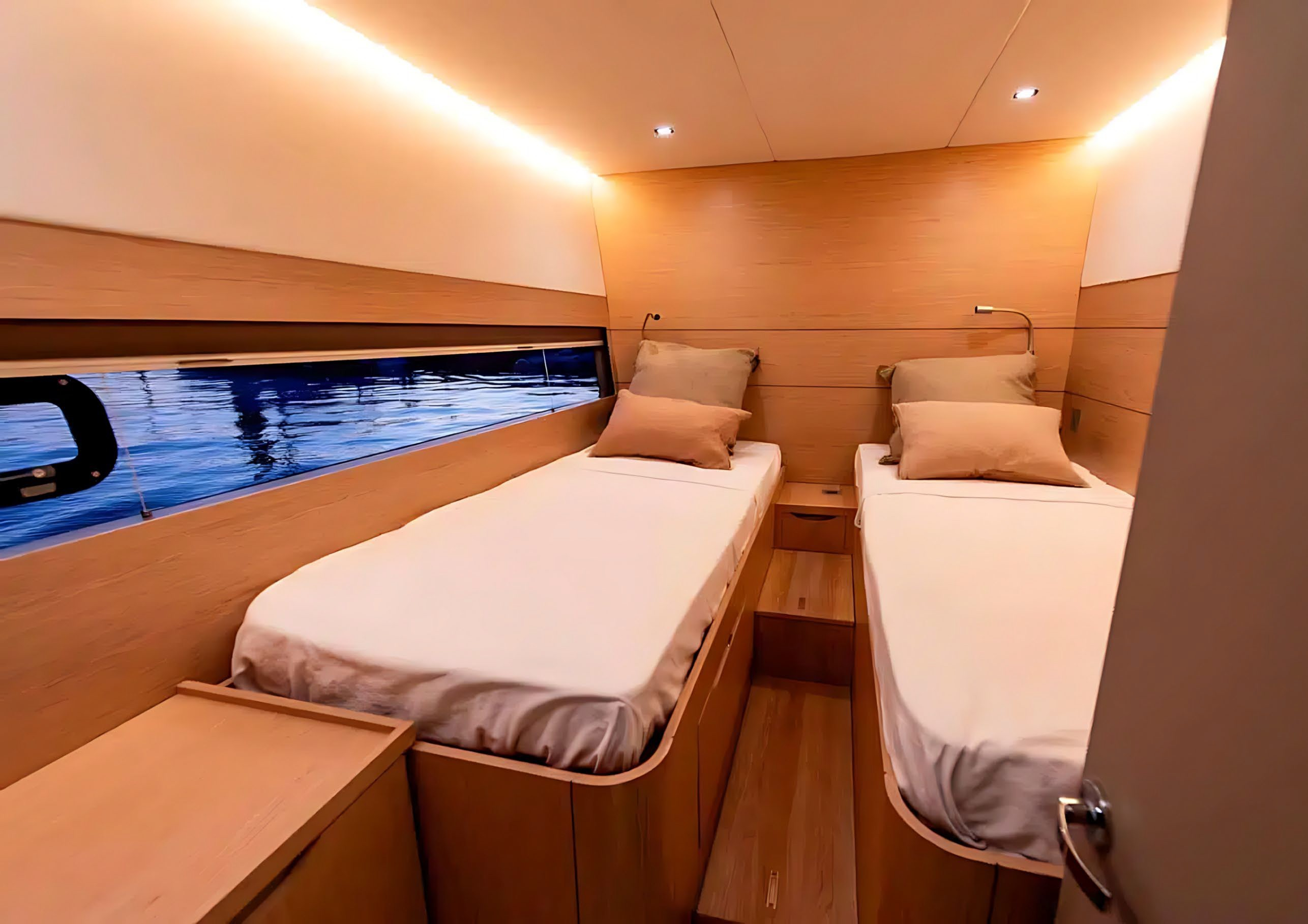

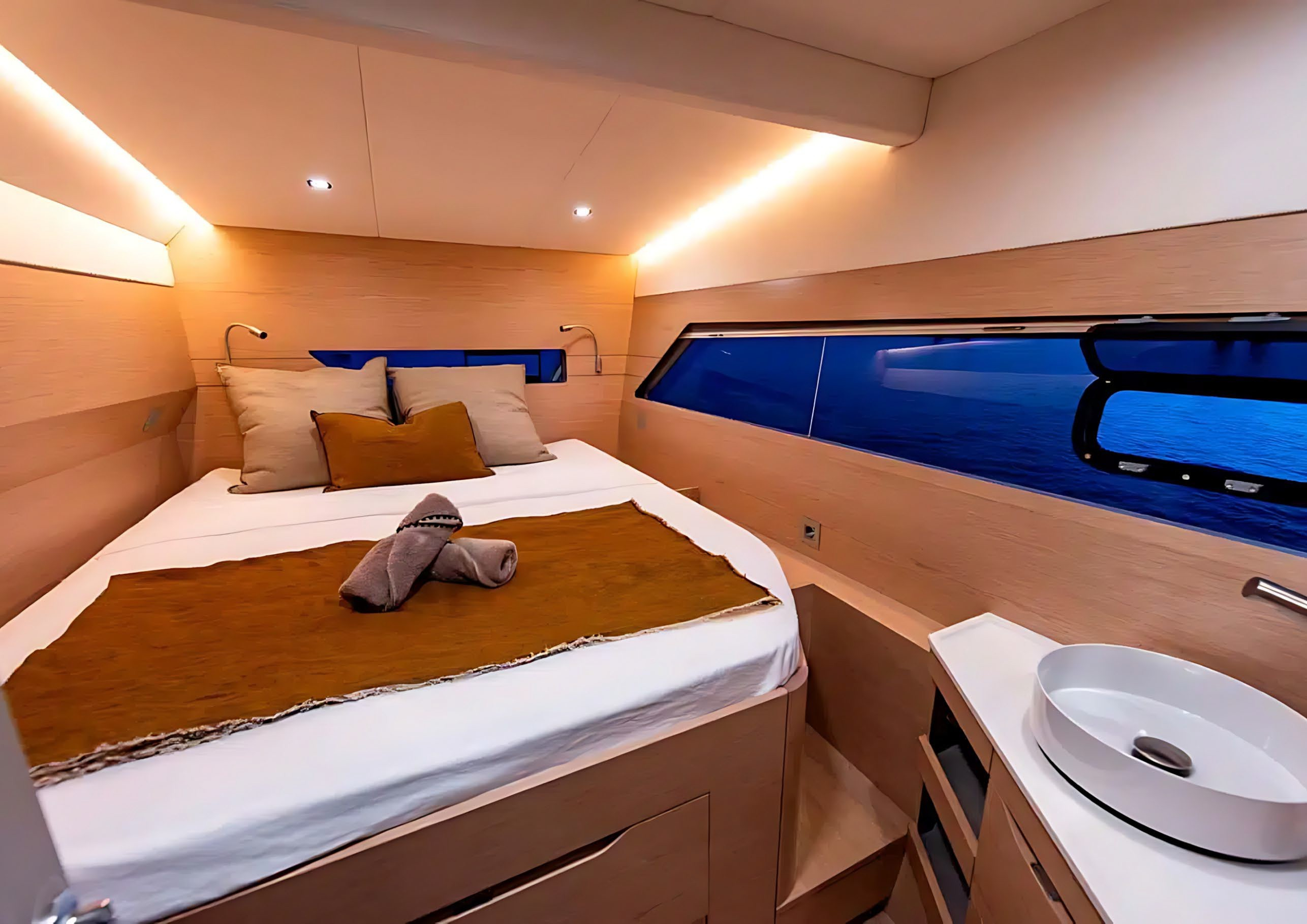

Owner The optional owner's suite provides a private 20 m² retreat centred on a 160cm x 200cm bed, with a bathroom, separate toilet, and a generous TV lounge or private office. That additional room can also serve as a cabin for two people, adding flexibility while environmentally friendly air conditioning supports comfort with optimised energy consumption throughout the accommodation area. Guests The guest area is arranged as two cabins for four people, with an aft cabin offering a 160cm x 200cm double bed and a central cabin configurable with two 80cm x 200cm single beds or a double bed. Guests also benefit from a bathroom with full ocean views, a separate toilet and environmentally friendly air conditioning on board. Crew Capacity for 2-3 crew members complements accommodation, supporting the MODX 70's flexible onboard arrangement and the relaxed, carefully considered living experience created throughout this innovative sailing catamaran.

Machinery

Electric Engines: Configuration: 2 × (2 × 20 kW) → four engines of 20 kW each. Equivalent power: 20 kW ≈ 27 HP → total output ≈ 108 HP. Propulsion is fully electric, ensuring zero CO₂ emissions. Propellers: Variable-pitch propellers optimised for efficiency. Provide instant hydrogeneration, generating between 3 and 10 kWp, depending on cruising speed. Wing Area: 2 × 125 m² Aeroforce wings

Security, Fire Fighting & Safety Equipment

Life rafts: 2x Plastimo Transocean 9650-1, 6-person Safety equipment package: 1x Plastimo offshore equipment Technical room fire protection: 2x Firepro System / lithium blanket Habitation extinguishers: 10x ABC 2 kg with detector Smoke and heat detectors: 4x Orbis Marine

Communication & Navigation

Communication Equipment VHF: 1x B&G V60 with antenna and H60 wireless handset Onboard telecommunications: 1x Thales Oceanbox Satellite communications: 1x Starlink maritime modem and antenna 4G/5G communications: 1x Teltonika RUTX50 modem. Navigation Equipment Navigation computers: 2x Bora 4 Premium Intel i5 Engine control: 1x Emerson OS III R417003816 AC/DC control display: 1x CZone 10" display Helm displays: 3x B&G Zeus S 7"; 3x B&G Zeus S 12" Navigation and energy manager: 2x MAD Brain Box Wind sensors: 2x B&G WS310 with MAD Mast 3D motion sensor: 1x MAD Motion Box Autopilot drives: 2x Raymarine Type 2 Long Stroke Linear Drive 24V Autopilot HW control: 2x MAD Controller - Madintec Autopilot software and Safe Mode: 1x Madintec Autopilot interface: 1x MAD Interface Autopilot remotes: 2x MAD wireless Receiver/Emitter Analog acquisition module: 1x MAD Digital Interface Autopilot compass: 1x B&G Precision 9 GPS: 1x B&G ZG100 Radar: 1x B&G HALO20+ Navigation lights: 5x Mantagua NaviPro Cameras: 6x B&G IP CAM-1 Barometer: 1x B&G barometric pressure sensor Depth, speed and water temperature: 2x Airmar DST810 Multisensor AIS transponder: 1x B&G NAIS-500 Class B with GPS-500 antenna.

Deck Equipment

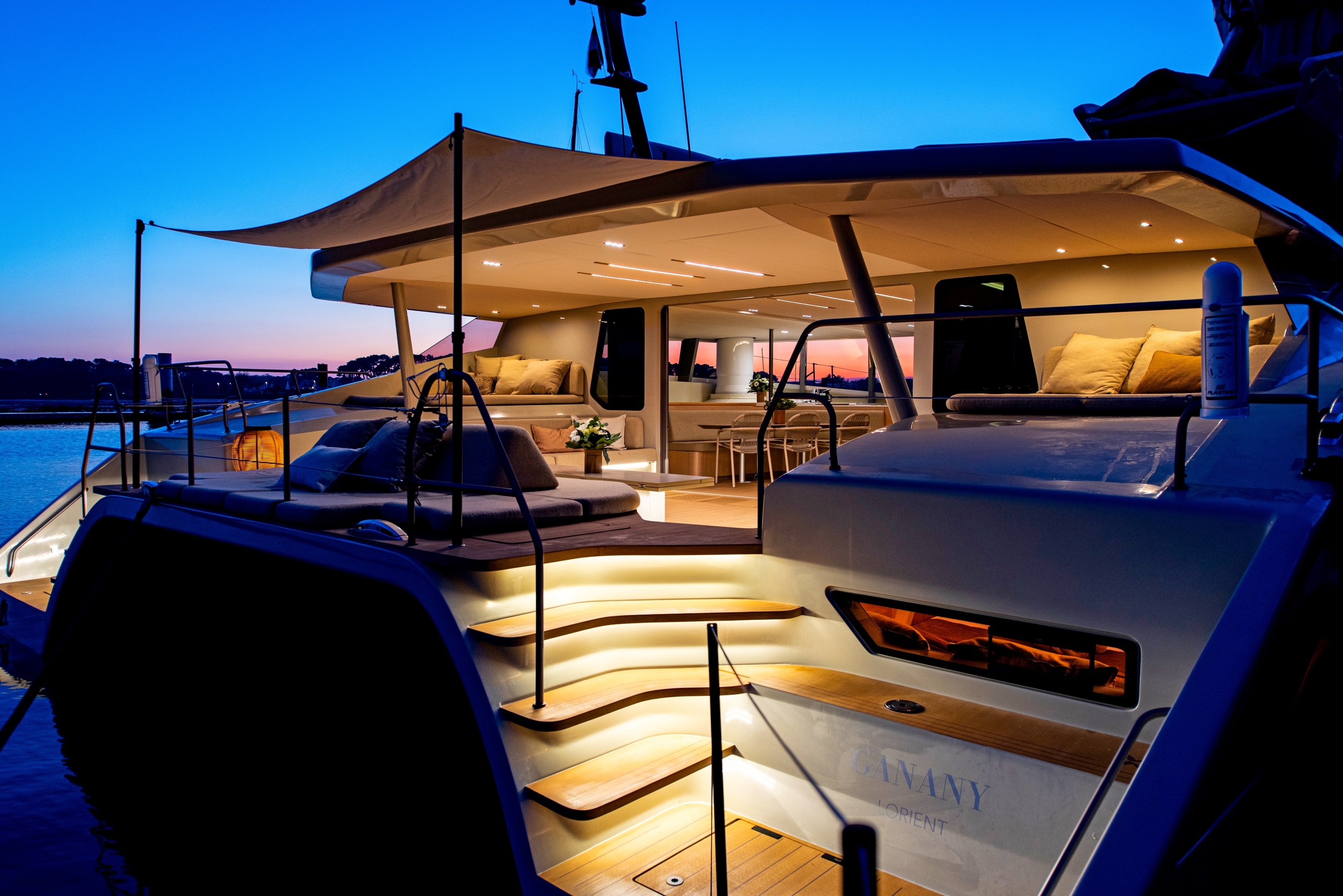

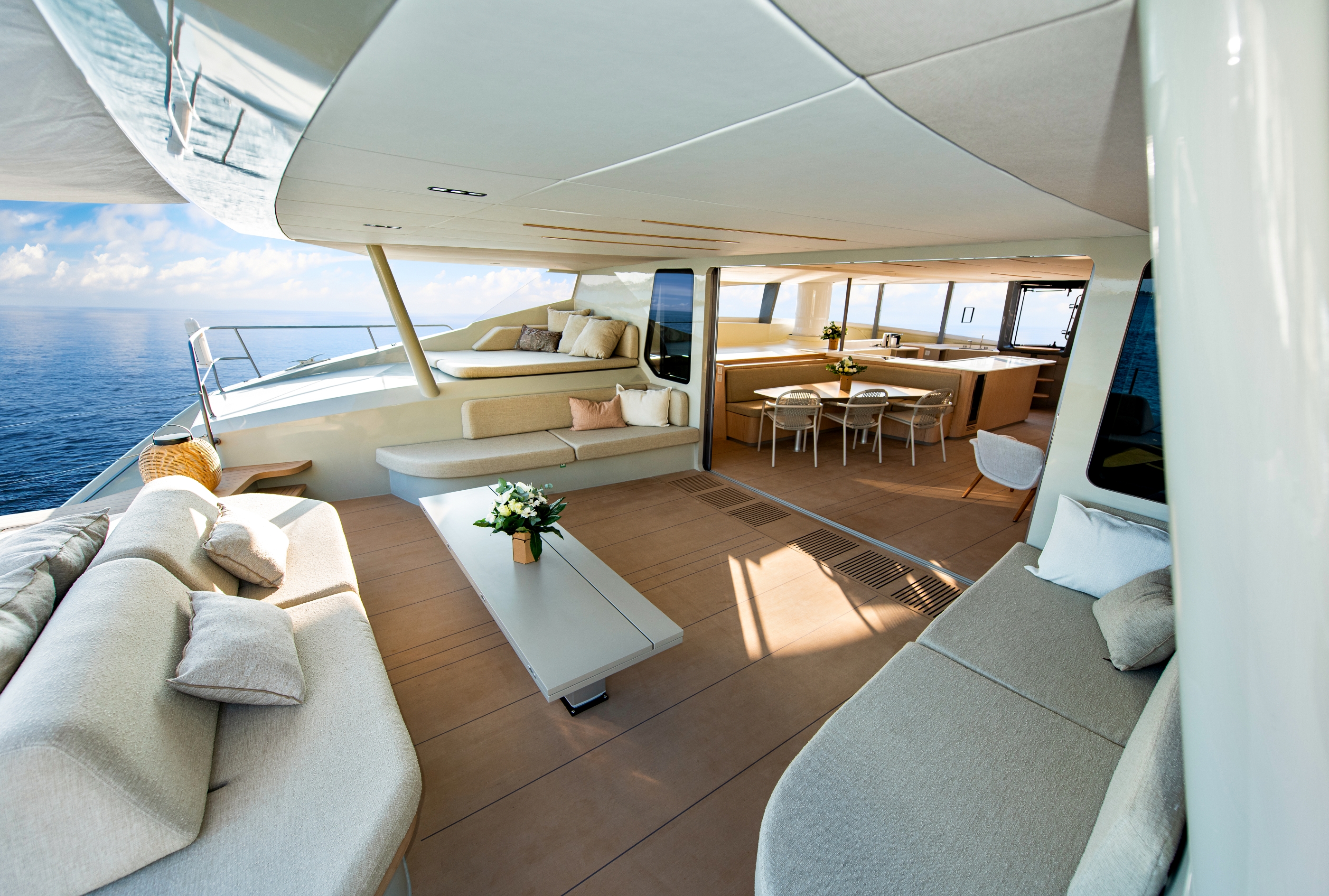

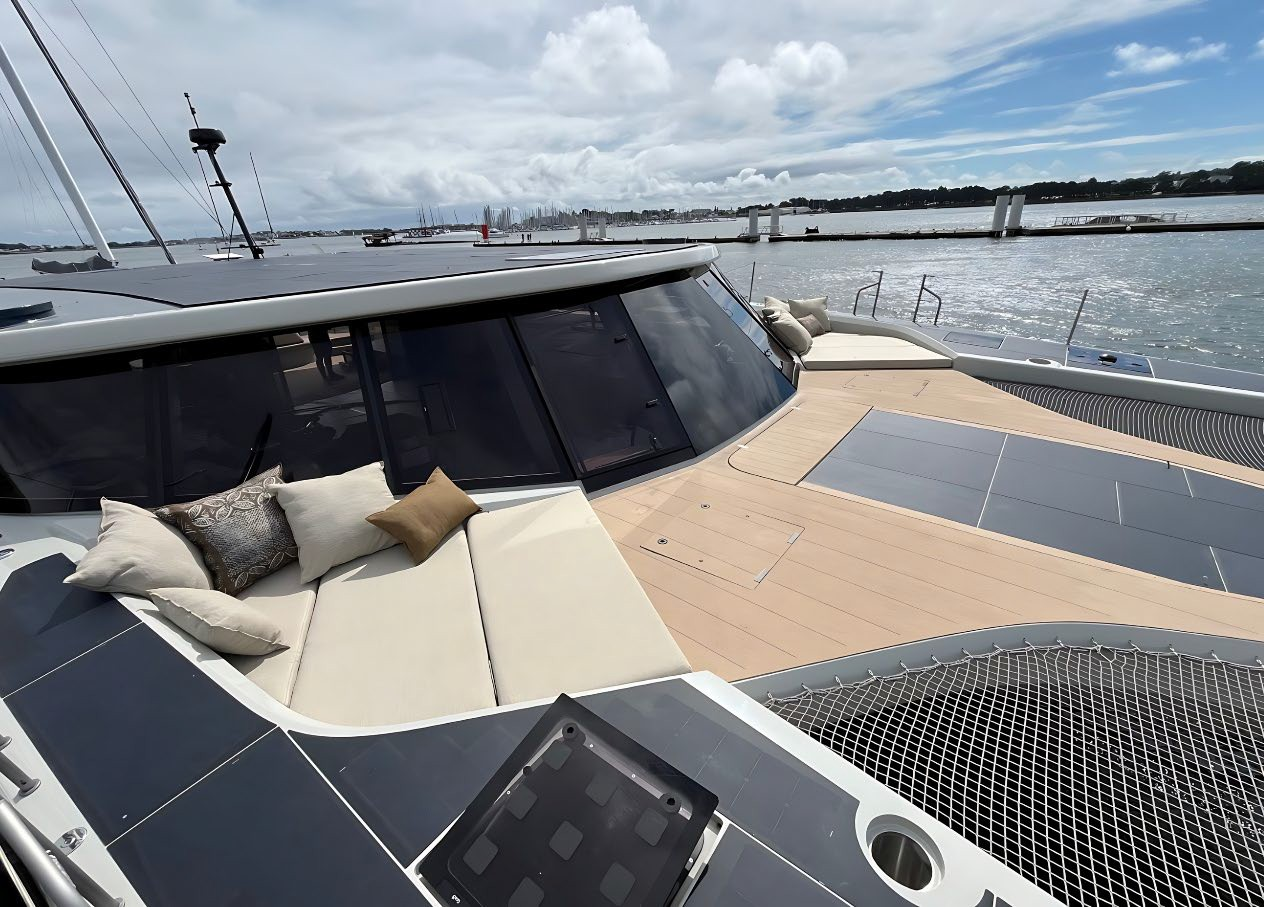

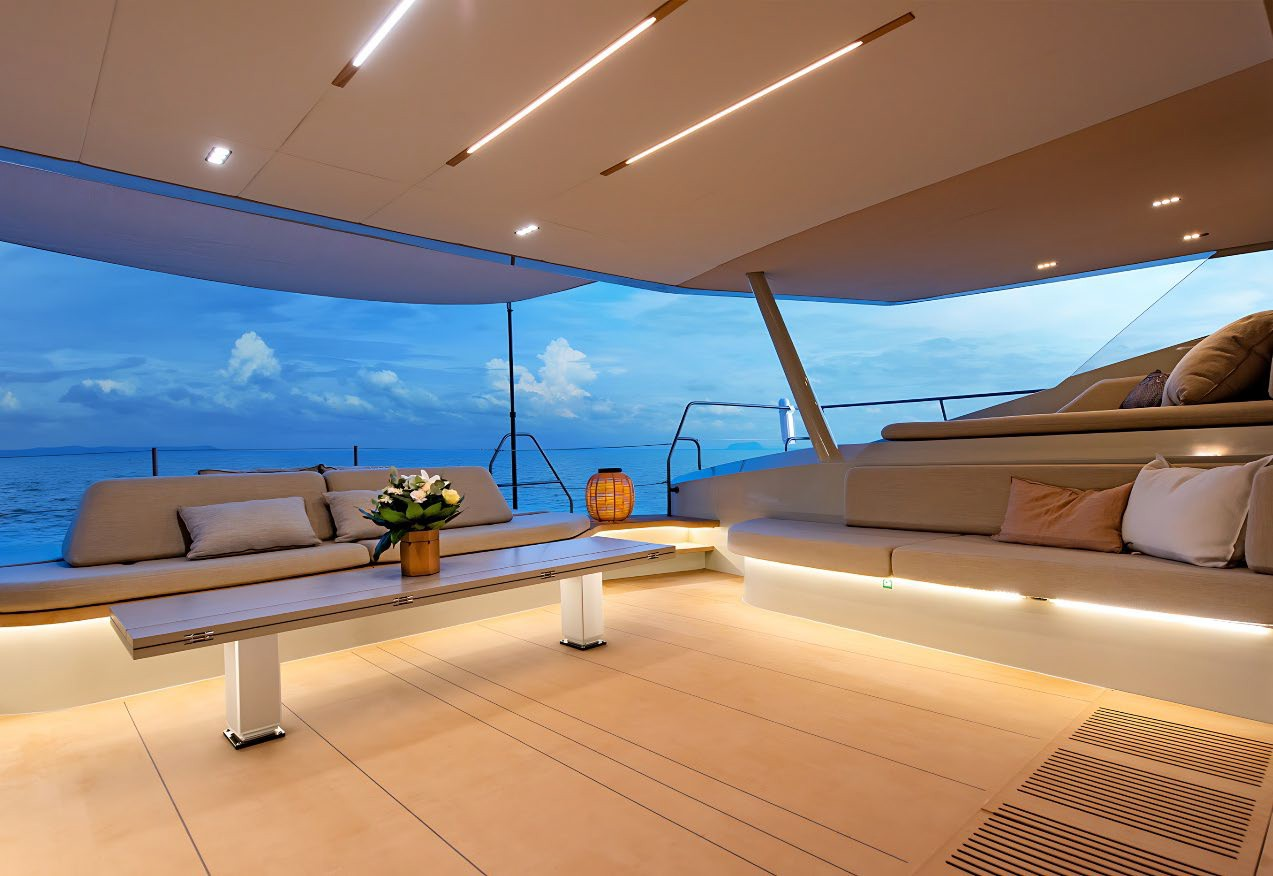

Outdoor deck: 45 m² shaded area with flexible aft sundeck and lounge areas Foredeck: 35 m² with sun loungers and water-sports storage Foredeck access: 2x glass doors Composite platform: Glass / carbon / linen / PET & PVC / epoxy resin Keels and rudders: 2x glass / carbon Primary anchor: 1x Ultra Marine Inox 60 kg; 60 m x 14 mm chain Secondary anchor: 1x Rocna Galva 33 kg; 30 m x 14 mm chain Windlass: 1x Quick Regal RG5 3000 W 48V Tender crane: 1x Atlas Davit 3000 Swim ladders: 2x Osculati Top Line Inox 316, 4 steps Gateway: 1x Nautex Cleats: 8x Nomen Alu 400 Mooring ropes: 2x 20 m + 2x 15 m, 30 mm polyamide Safety-line padeyes: 6x Seasmart SL20x Padeyes: 14x Wichard Inox 316, 8 mm Fenders: 6x Plastimo, 90 cm x 30 cm Stanchions and lifelines: 10x Goiot Sport'Al + custom Shade sails: 4x Seasmart systems + custom sails Interior deck flooring: Esthec synthetic decking Exterior deck flooring: Esthec synthetic decking Adjustable outdoor table: Custom MODX, retractable 24V Outdoor sofa and bean bags: Vincent Sheppard / Maison de Vacances Outdoor pads and cushions: All Purpose custom / Maison de Vacances

Entertainment System

Home cinema: Built-in TV screen: 1x 65" , 230V, 100 W Owner's suite: Large TV lounge Lighting system: 32x Quick Marine Lighting

Galley Equipment

Fridge/freezer: 1x Bosch KIV86VS30, 191 L + 76 L Fridge: 1x Electrolux LRB3AE88S, 142 L Wine cellar: 1x Avintage AVU27TDZB1, 18 pcs Cooking table: 1x Bora X Pure Oven: 1x Brandt BOP7534B, 73 L Dishwasher: 1x Smeg STL62324LFR1, 8.5 L Washing machine and dryer: 1x Siemens Kitchen worktop/bar: 1x Corian Kitchen sink fitting: 1x Elka H2Pure 316563 Dining table and chairs: 1x Custom MODX Sails & Rigs 2x Aeroforce AF100 automated retractable inflatable wings, 100 m² each Retractable mast, balestron and head: 2x glass / carbon Inflatable airtight wings: 2x patented fabric Wing sensors and machinery: 2x Aeroforce Automation: 1x Aeroforce/Madintec Wing system: Retractable on telescopic mast; automated wing control Reefing: Automatic according to wind direction and strength.

Tenders & Toys

Highfield tender: 3.4 m; 6 persons Torqeedo 10 kW electric motor Tender autonomy: 2 hours Tender safety equipment: 1x Plastimo

Other Technical Information
