MAGELLANO 66

For Sale

Builder

Azimut

Built Year

2022

Flag

Italy

Location

Roma, Italy

Length (M):

Price

Euro (€)2,200,000

Rate

About the Yacht

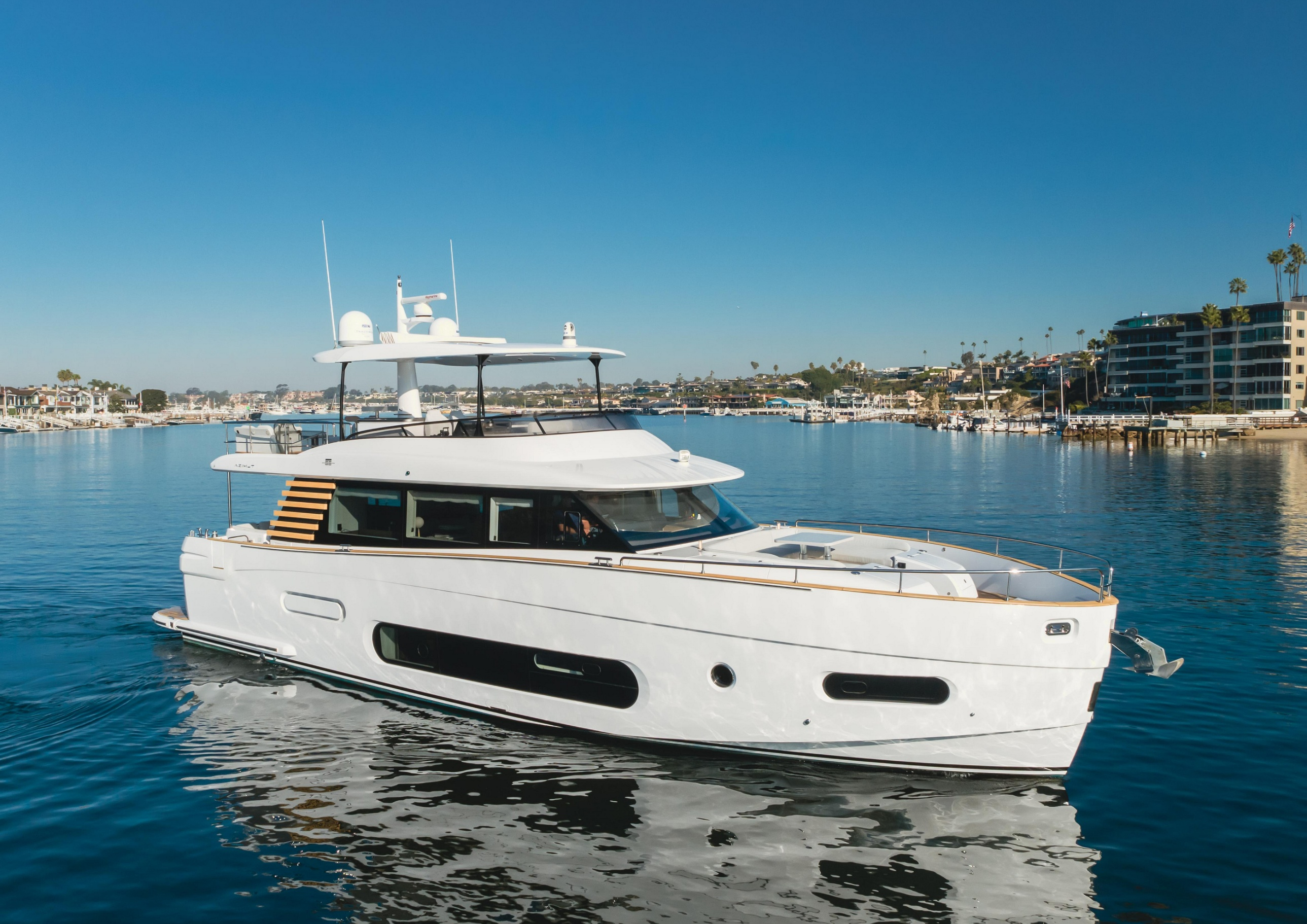

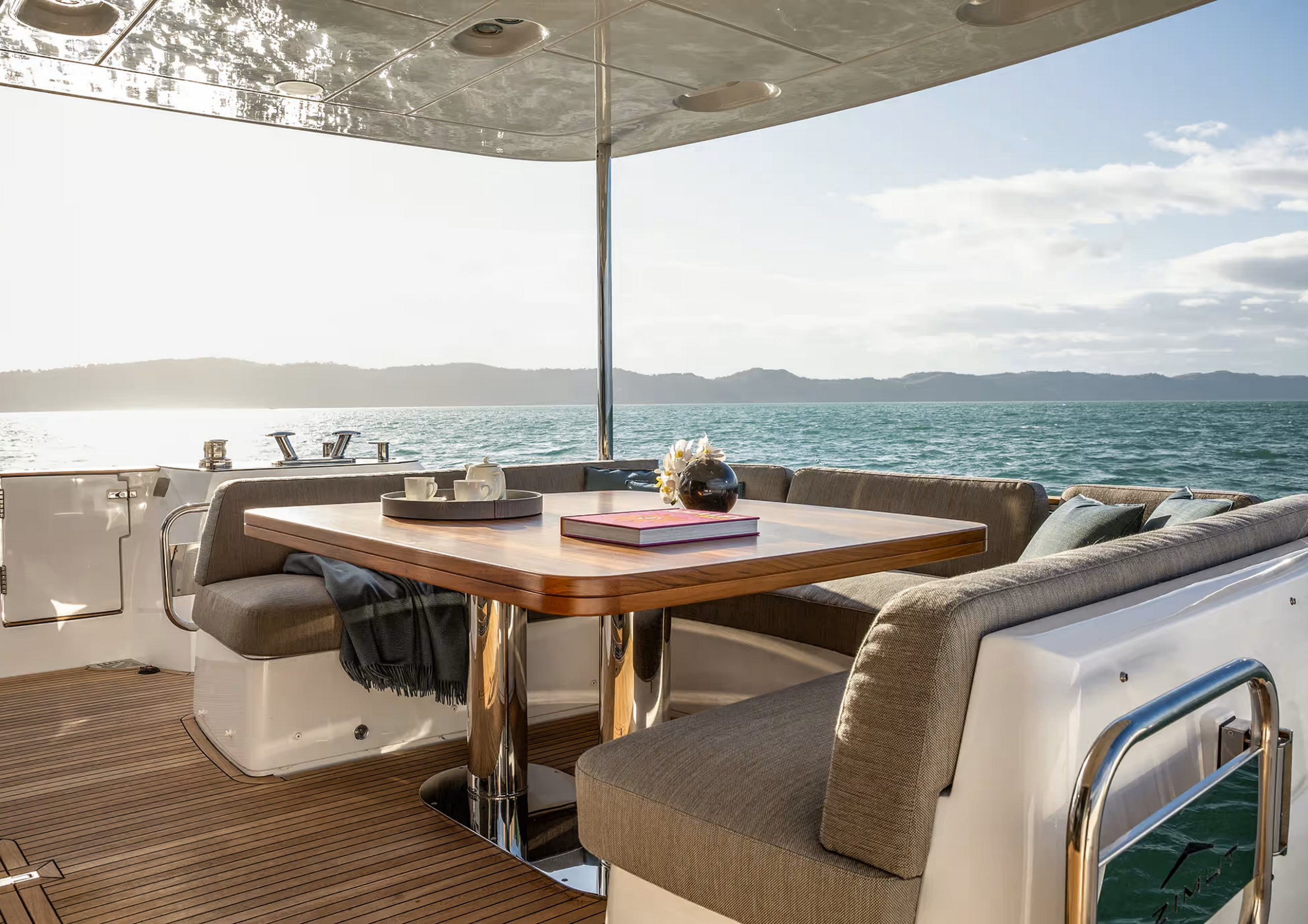

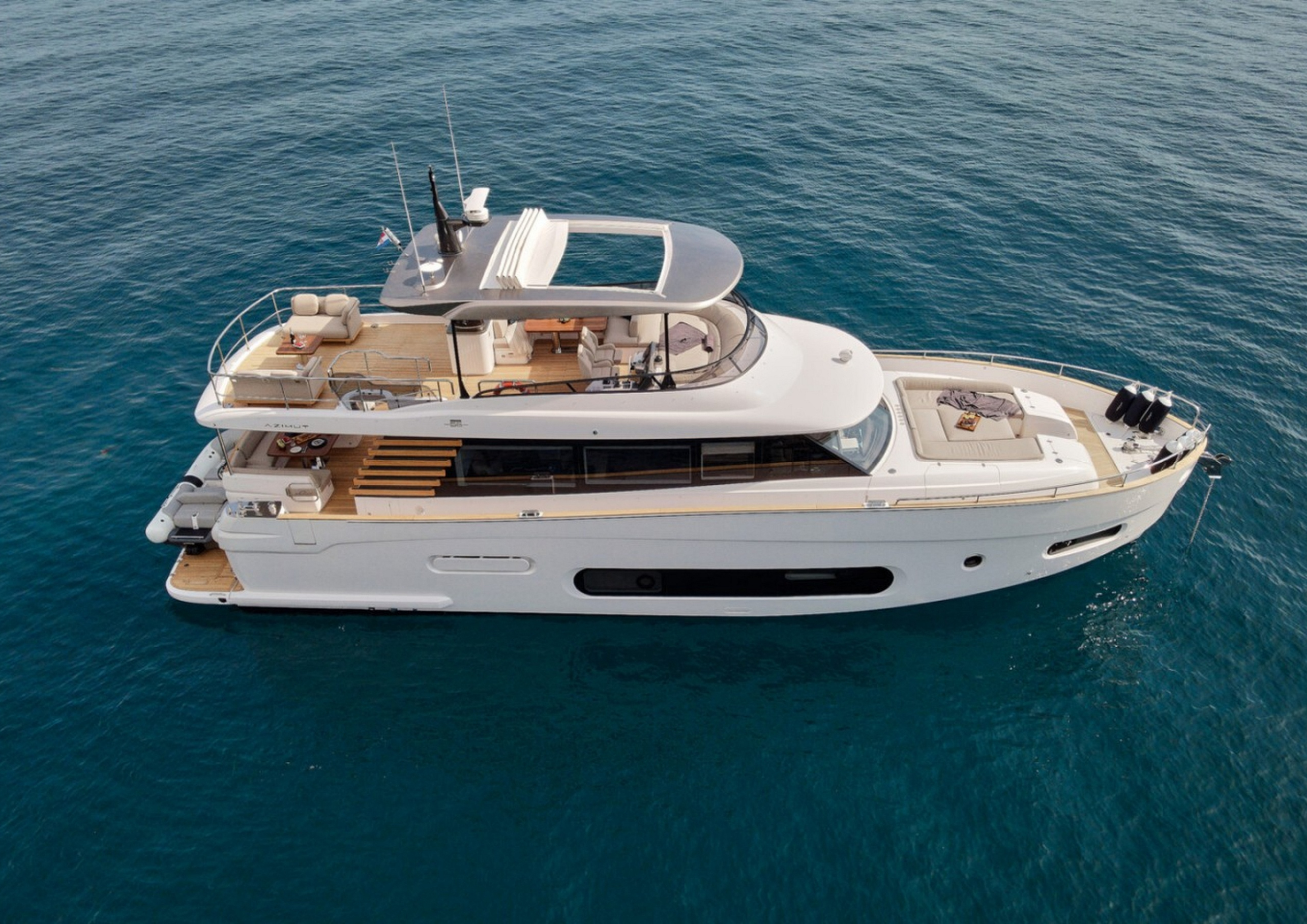

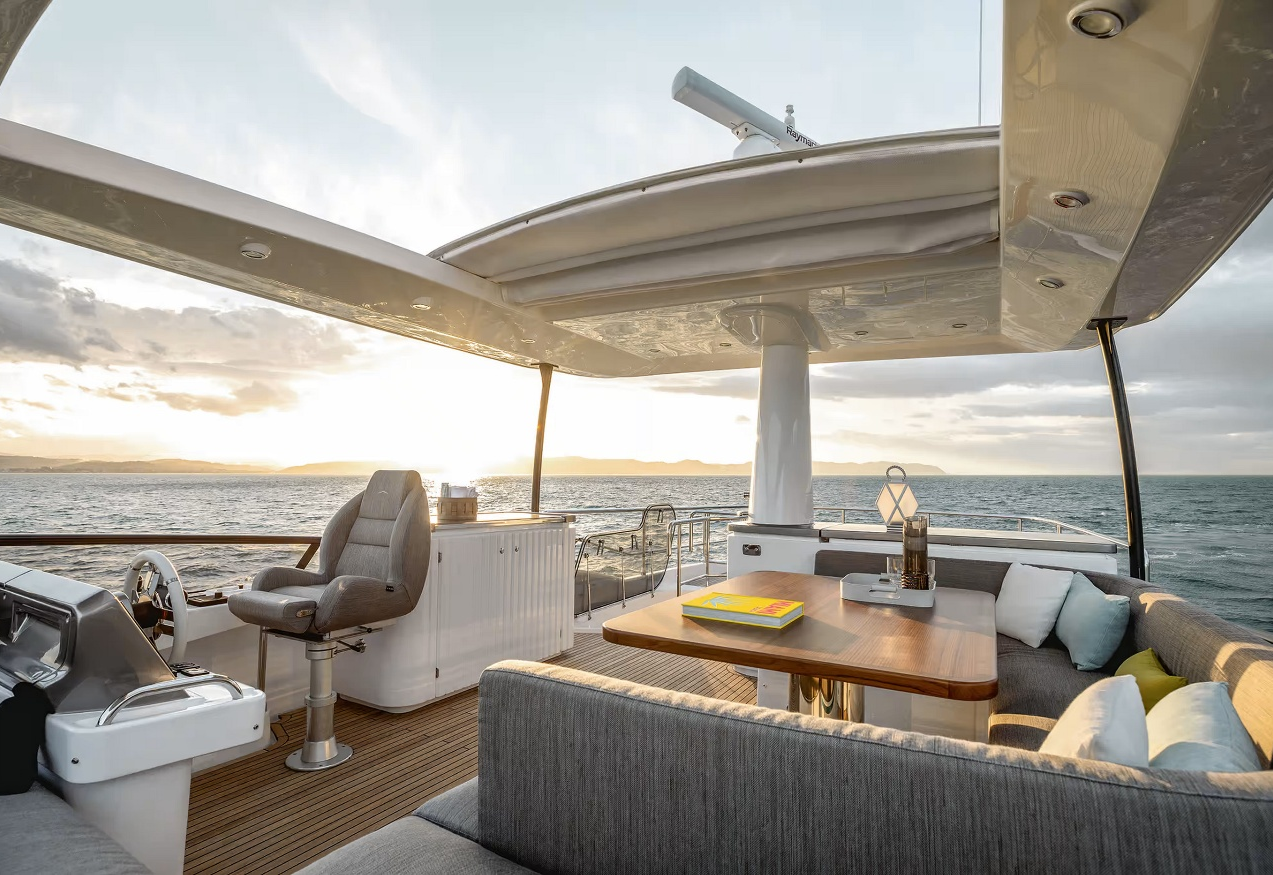

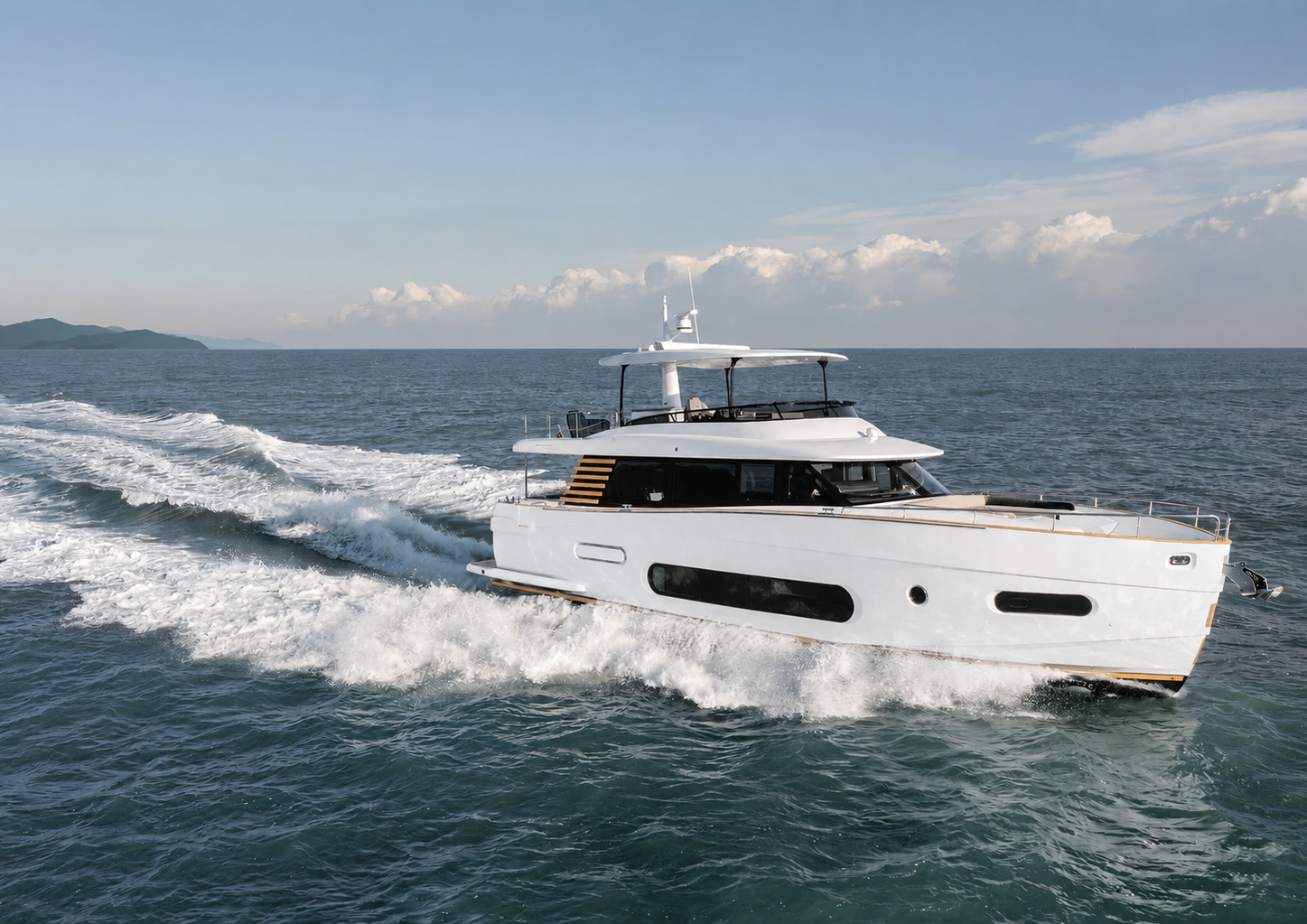

The Magellano 66 presents an elegant Azimut ownership proposition, combining a 20.15 m profile with GRP and carbon fibre construction, a semi-planing dual mode hull and confident MAN diesel performance. Her principal specifications include a 5.54 m beam, 1.65 m keel draft, 1.72 m draft at propellers, CE category A and a maximum capacity of 8 persons. The flybridge offers open-air enjoyment with a forward sofa-sunpad area, teak table for eight, aft sunbathing area, wet bar with sink, 50-litre refrigerator and storage. The cockpit continues the invitation with teak decking, a six-seat C-shaped sofa, teak table, LED lighting with dimmer and easy access to the platform for relaxed boarding and sea-level leisure. Accommodation is arranged with four cabins plus one crew cabin, eight berths plus two crew berths and three + one services. A full-beam owner's cabin, forward VIP cabin, guest twin cabin and optional fourth twin cabin create flexible comfort. Cruising at 19 knots and reaching 24 knots delivers Azimut capability, with long-range cruising at 12 knots and a stated range of up to 490 nm in long-range mode for extended passages.

Characteristics

Accommodation

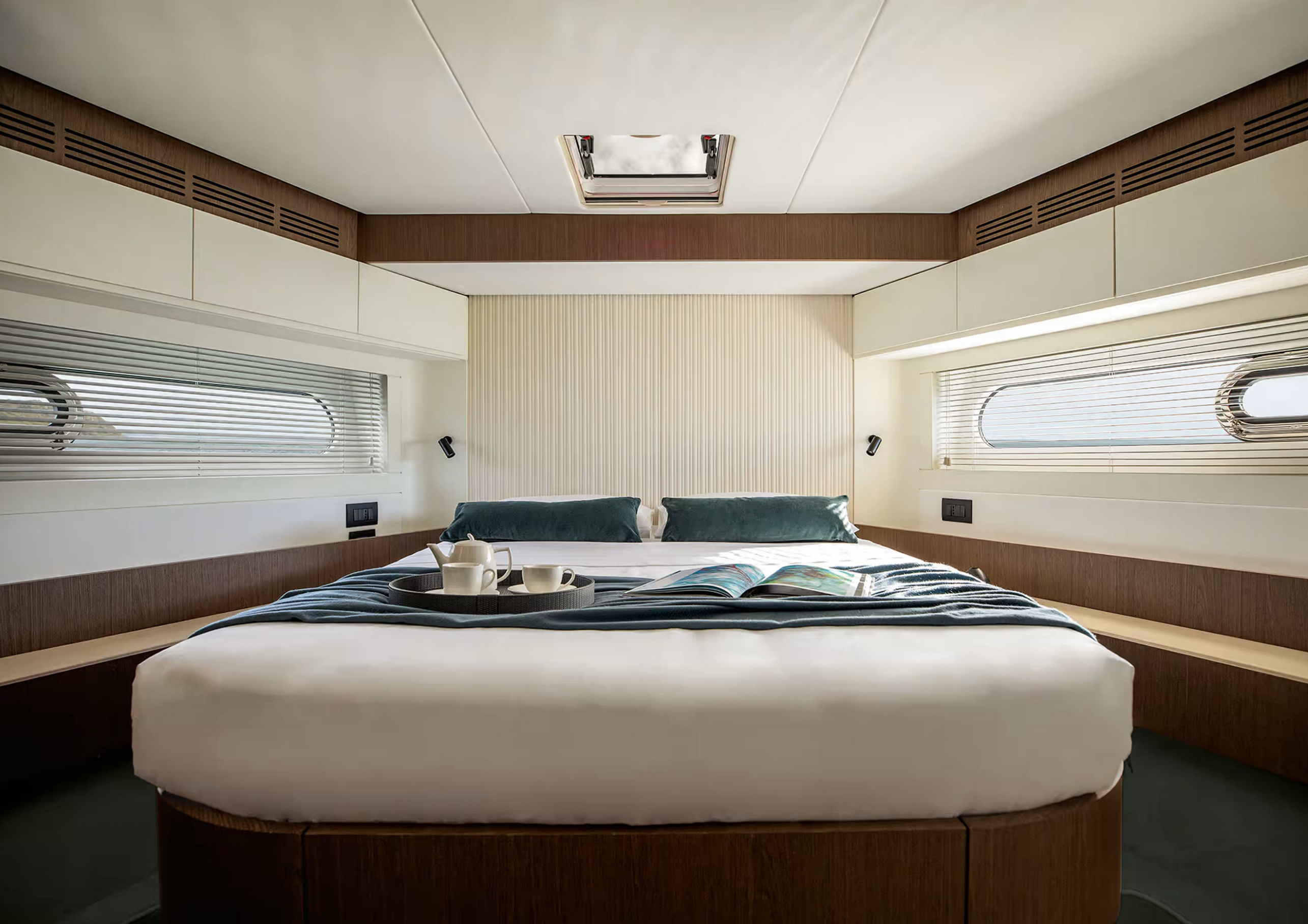

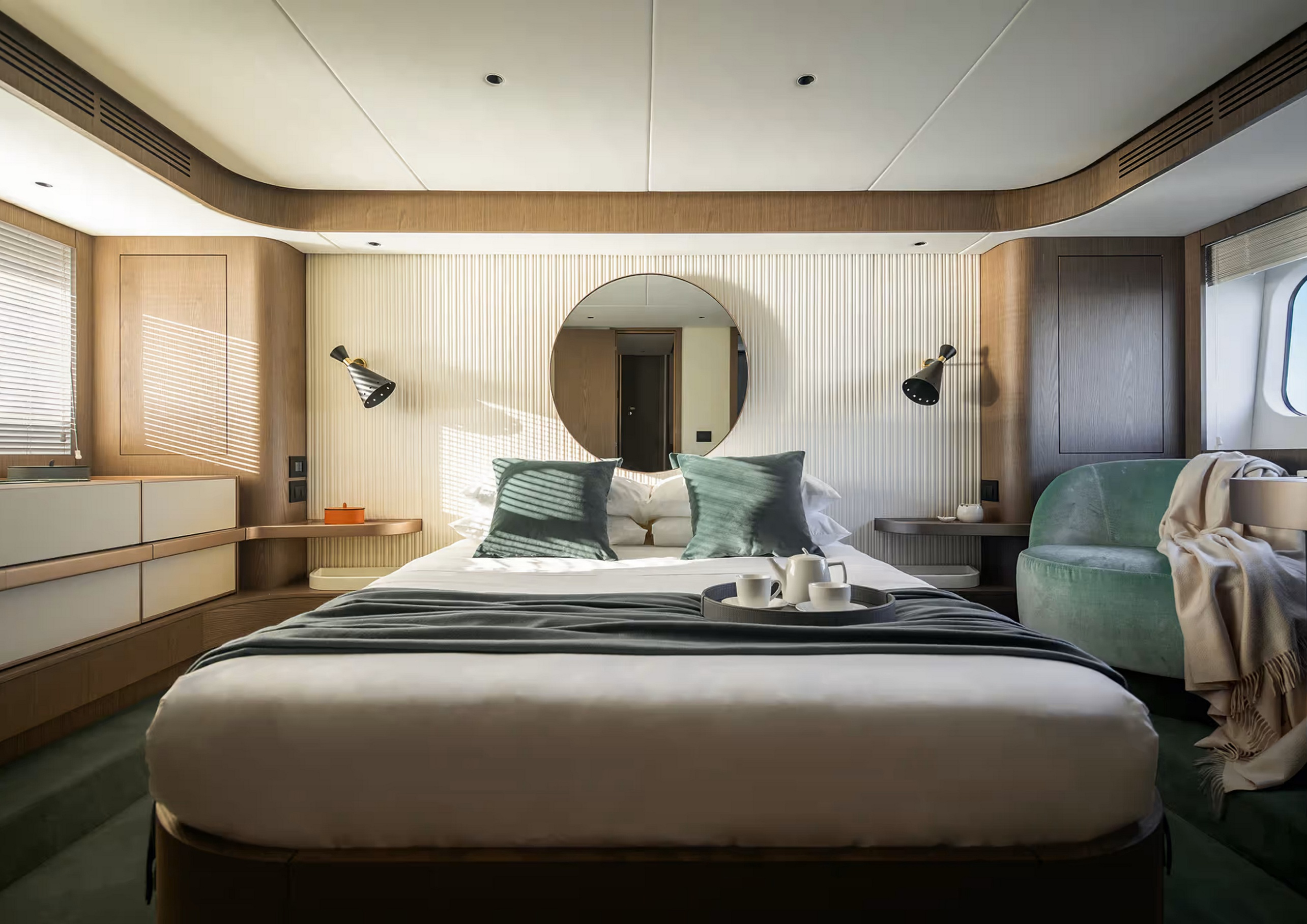

Owner The full-beam owner's cabin is positioned amidships with direct access to a bathroom. It features a longitudinal double bed with storage below, bedside units, a fabric headboard, vanity table with armchair, panoramic windows with opening portholes, wardrobes, 230 V AC sockets, LED lighting and reading lamps. Guests Guest accommodation includes a forward VIP cabin with dedicated bathroom, double bed, wardrobes, reading lights, opening portholes and ceiling hatch. The third guest cabin offers twin beds, storage below, wardrobe, opening porthole, LED lighting and access to a guest bathroom reached from the corridor. The fourth cabin is standard as pantry-storage, with optional twin configuration. Crew Crew area provides sailor cabin accessed from the platform side, with two single beds, one folding, lockers, shelves, opening oval porthole, panoramic aft window, natural ventilation and carpet / GRP flooring. A dedicated crew bathroom includes washbasin, TECMA WC, shower lighting, opening porthole, 230 V AC socket and electric extraction.

Machinery

2x MAN i6 diesel 6-cylinder - 850 Hp/625 kW Gearboxes: ZF 400 IV 2,458 reduction ratio Propulsion: Line shaft with integrated V-drive Propellers: 5-blade NiBrAl diameter 900 mm Shafts: 75 mm Marinox 17, 9° shaft angle

Security, Fire Fighting & Safety Equipment

3x 24 V centrifugal bilge pumps automatic/manual 24 V low-flow automatic bilge pump 3x Manual bilge pumps with diverter valves Bilge pump operation warnings and high-level alarms Gas extinguishing bottle with mechanical release Emergency engine and generator shutdown command Anchor safety retention system

Communication & Navigation

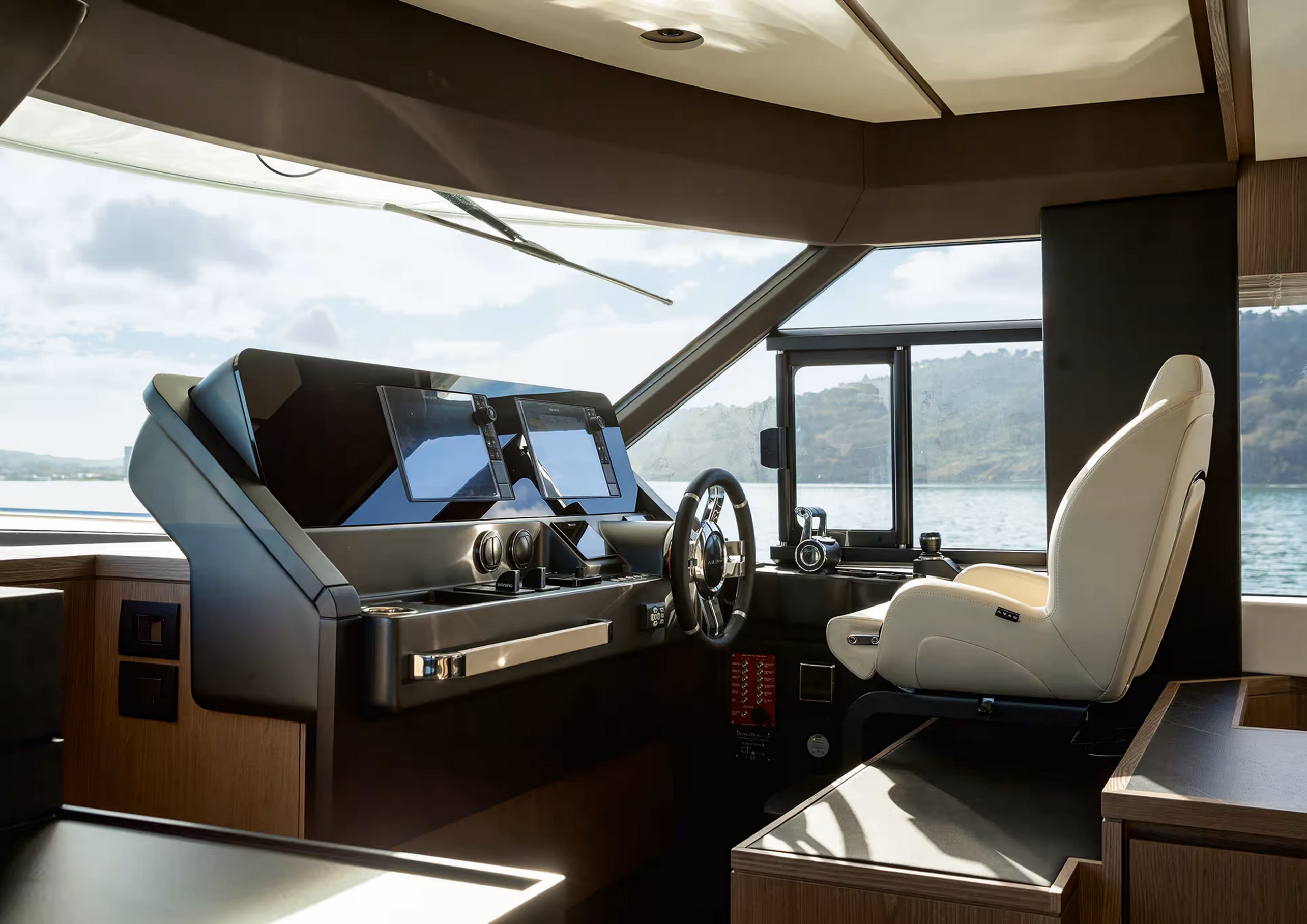

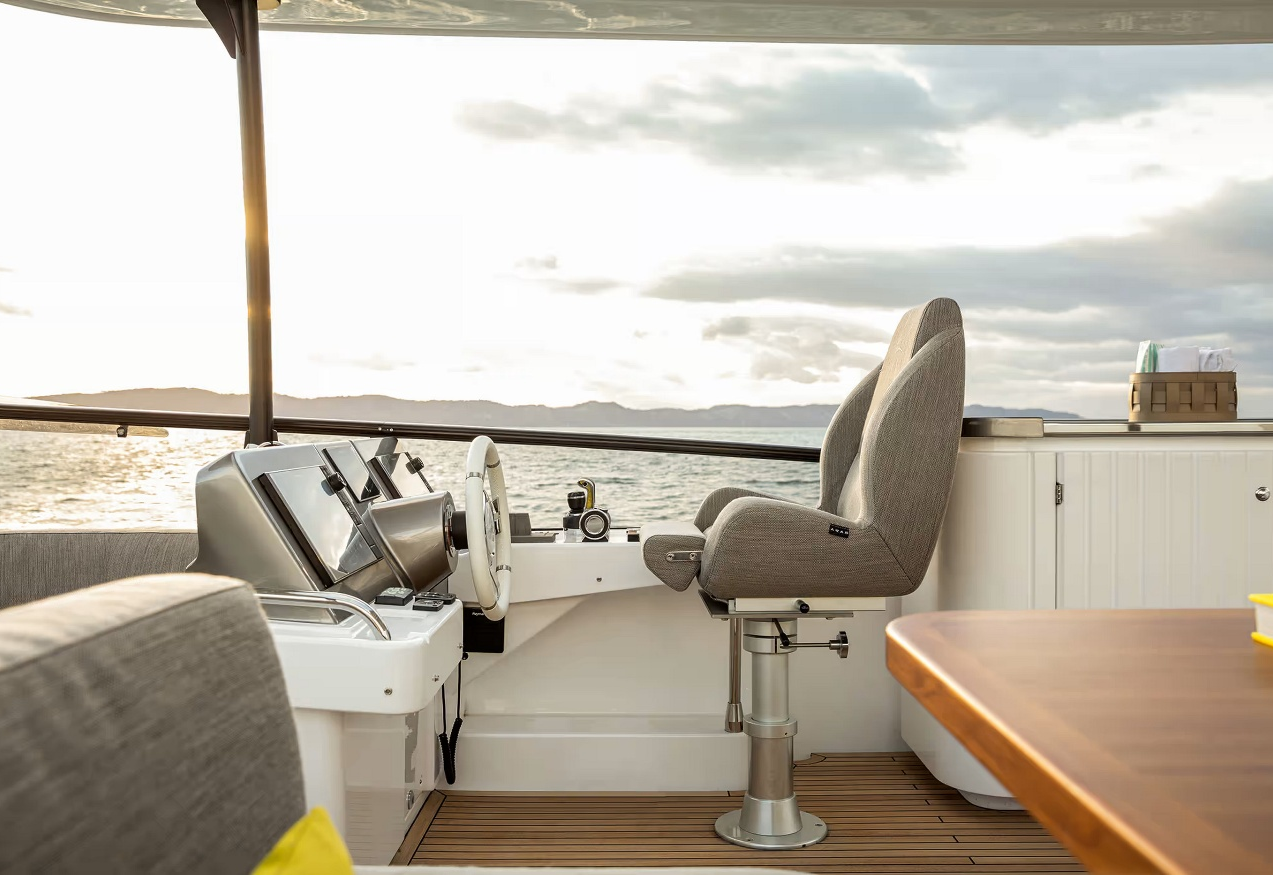

Communication Equipment VHF antenna Horn Navigation Equipment Navigation electronics BRONZE series 2x Multifunction display 5" with fuel level indication 7" Engine control display Raymarine integrated monitoring/alarm display Magnetic compass Joystick maneuvering control Navigation and anchor lights

Deck Equipment

40 kg stainless steel anchor; Stainless steel anchor roller and shield 75 m galvanized steel chain, diameter 12 mm 2300 W anchor windlass 8x Fenders; 8x Black fender covers; 24 m Fender lines 5x Mooring lines; 2x Mooring winches Teak table; Teak fixed table with stainless support for eight Electric searchlight Telescopic boat hook Window mesh covers for windscreen and side windows

Entertainment System

TV-lift system predisposition

Galley Equipment

Fridge-freezer 220 L Black HPL worktop Hot-cold water mixer Stainless steel sink Pull-out waste bin 4-burner ceramic hob with silicone pan holders Extractor hood Microwave oven Wall cabinet 50 L refrigerator
